Product Details:
|
| Product Name: | High Quality Wollastonite Powder(Calcium Metasilicate) | Formula: | CaSiO3 |
|---|---|---|---|
| Usage: | Engineering Technical Plastics Fluoro Elastomer E.g. For Oil Sealing Heat-resistant Refractory Ceramics Metallurgy Wood Composites Adhesives Filler In Paint, Paper And Other Products Friction Products Such As Brake Pads | Future: | Noticeable Acicular And Long Fiber |
| Size: | Mesh-325,Mesh-1000,Mesh-1250,Mesh-2000 | Color: | White |
| Shape: | Powder | Leading Time: | 15 Working Days |
| Highlight: | Mesh 2000 Wollastonite Powder,Wollastonite Powder Mesh 2000,White CaSiO3 |
||
Grade:HGWD-2000

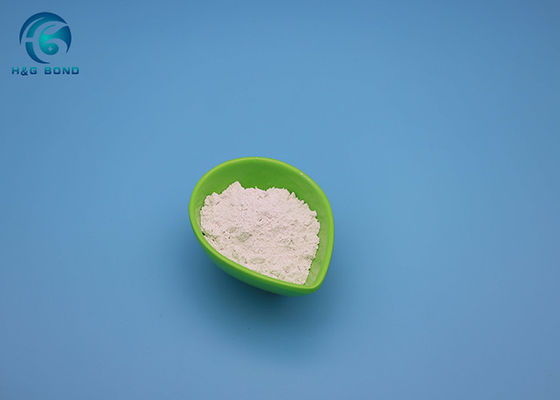

Product:High Quality Wollastonite Powder(Calcium metasilicate)
Plastics: In plastics, wollastonite improves the durability of the composite due to its acicular or needle-like structure. It also enhances electrical insulating properties, adds fire resistance, and improves dimensional stability. Finer particle size grades provide improved scratch and impact resistance compared to other materials. The application of surface treatments like silanes on the wollastonite substrate changes the mineral from a utilitarian filler to a functional component of a polymer composite. This in turn adds performance values which the base resin alone does not possess. Optimum performance is created by properly matching the correct coupling agent at the right concentration level to the polymer system. Overall, the benefits of a surface modified wollastonite are improved physical properties, improved processing along with improved dispersion of the resin.
Properties
| Item | Mesh-325 | Mesh-325 | Mesh-1000 | Mesh-1250 | Mesh-2000 | Mesh-2500 | Mesh-3000 |
| Density g/cm3 | 2.8-2.9 | 2.8-2.9 | 2.8-2.9 | 2.8-2.9 | 2.8-2.9 | 2.8-2.9 | 2.8-2.9 |
| Mohs Hardness | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Whiteness (R45T%) | 88±2 | 88±2 | 88±2 | 88±2 | 88±2 | 88±2 | 88±2 |
| Oil Absorption Rate (ml/100g) | 50 | ≦55 | ≦55 | ≦55 | ≦55 | ≦55 | ≦55 |
| Particle Size | D50(um) | D50(um) | D50(um) | D50(um) | D50(um) | D50(um) | D50(um) |
| Refractive Index | 1.63 | 1.63 | 1.63 | 1.63 | 1.63 | 1.63 | 1.63 |
| PH | 9.9 | 9.9 | 9.9 | 9.9 | 9.9 | 9.9 | 9.9 |
| Coefficient of expansion(mm/mm/℃) | 6.5 x 10-6 | 6.5 x 10-6 | 6.5 x 10-6 | 6.5 x 10-6 | 6.5 x 10-6 | 6.5 x 10-6 | 6.5 x 10-6 |
| Aspect Ratio | 3.1-6.1 | 3.1-6.1 | 3.1-6.1 | 3.1-6.1 | 3.1-6.1 | 3.1-6.1 | 3.1-6.1 |
| Melting Point | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
| Chemical Properties | |||||||
| Fe2O3 | 0.38% | 0.38% | 0.38% | 0.38% | 0.38% | 0.38% | 0.38% |
| Al2O3 | 0.32% | 0.32% | 0.32% | 0.32% | 0.32% | 0.32% | 0.32% |
| CaO | 45.70% | 45.70% | 45.70% | 45.70% | 45.70% | 45.70% | 45.70% |
| MgO | 1.39% | 1.39% | 1.39% | 1.39% | 1.39% | 1.39% | 1.39% |
| SiO2 | 50.61% | 50.61% | 50.61% | 50.61% | 50.61% | 50.61% | 50.61% |
| L.O.I | 1.41 | 1.41 | 1.41 | 1.41 | 1.41 | 1.41 | 1.41 |
Remark:The properties can be customized according with client’s requirements.
Decriptions
Wollastonite is an inorganic needle-like mineral, and wollastonite products have very noticeable acicular and long fiber structures .It is characterized by non-toxicity, chemical corrosion resistance, good thermal stability and dimensional stability, glass and pearl luster, low water absorption and oil absorption value, excellent mechanical and electrical properties,even reinforcing effect. Wollastonite products with long fibers and easy separation, low iron content and high whiteness.
Wollatonite is Widely used in plastics, rubber, asbestos substitutes, paint coatings and other fields, it can increase the hardness, flexural strength, impact resistance of products, improve the electrical properties of materials, improve thermal stability and dimensional stability, and is the most promising application field. It is also used in the ceramics and metallurgical industries. The SiO2 and CaO components in wollastonite provide low expansion rate and good thermal shock resistance.
Application
Wollastonite is used for many different industrial purposes, including the production of:
Engineering technical plastics
Fluoro elastomer e.g. for oil sealing
heat-resistant refractory ceramics
metallurgy
wood composites
adhesives
filler in paint, paper and other products
friction products such as brake pads
Advantages
a. good compatibility.
b. Excellent Stability and products meets clients requirement absolutely
c. Excellent performance on physical properties
