Product Details:
|
| Product Name: | Hot Melt Tie Resin | Material: | Maleic Anhydride Functionalized Polyethylene Mixture |
|---|---|---|---|
| Color: | White | Usage: | TOP Coat Of Steel Pipe |
| Future: | Excellent Processability And High Adhesive Strength | Shape: | Pellet |
| Packing: | 25kgs/bag | Certificate: | Report Of REACH (SVHC 224) |
Grade:LE910
Product:Adhesive Resin/Tie Resin for Top Coat of Steel Pipe
Decriptions
TOP COAT is a steel pipe coating resin that is used along with adhesive resin. It has a triple coating system that includes an anti-corrosion function.
LE910 adhesive resin /Tie resin is used for top coating pipe.Our solutions for safe, reliable and long-lasting pipelines are developed to withstand long operational duration.
Chemical Structure
Composition: Maleic Anhydride fuctionalized polyethylene mixture.
Application

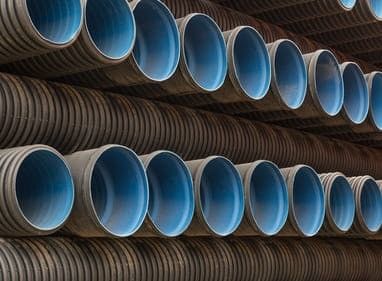

LE910 adhesive resin is used for steel pipe triple coating,which is usually for oil&gas and drain pipe.
Physical Properties
| Test Method | Unit | LE910 | |
| Appearance | Visual method | Pellets | |
| Density | ASTM D1505 | g/cm3 | 0.93 |
| MFI |
ASTM D-1238 190℃/2.16kg |
g/10min | 1.8 |
| Elongation at Break | ASTM D638 | % | 850% |
| Tensile Breaking Strength | ASTM D638 | MPa | 16.4 |
| Tensile Yield Strength | ASTM D638 | MPa | 9.7 |
| Melting Point | ASTM D3418 | 10℃/min | 110 |
| Vicat Softening Point | ASTM D-1525 | 2℃/min | 80 |
Adhesive Strength Test Process
| Machine Type | Working Temp(℃) | Test Speed(mm/min) | Pressure(kgf/cm2) |
| Heat Roll-presser | 130-150 | 3,000 | 2.5~3.5 |
Advantages
1.Excellent bonding strength and wide range application, excellent chemical high adhesion with galvanized pipe, tinplate, stainless steel and other metals;
2.Maintain the excellent weather resistance and chemical resistance of polyolefin resin, and have excellent compatibility and excellent mechanical properties with PE, Epoxy and other resins;
3. Hygienic and safe, no residue of toxic substances.
4.Excellent resistance to acid,alkali,salt atmosphere and other chemical materials.
Packages and Storage
