Product Details:
|
| Material: | Maleic Anhydride Functionalized Vinyl Hot Melt Resin | Color: | Transparent |
|---|---|---|---|
| Usage: | Aluminium Honeycomb Panel For Ceiling | Future: | Low Temperature And Surface Embossing |
| Manufacturing Method: | Cast Film | Structure: | 100% Adhesive Resins |
| Highlight: | Low Temperature Adhesive cast film,cast film UV resistance,Transparent cast film |
||
Grade:AH5015

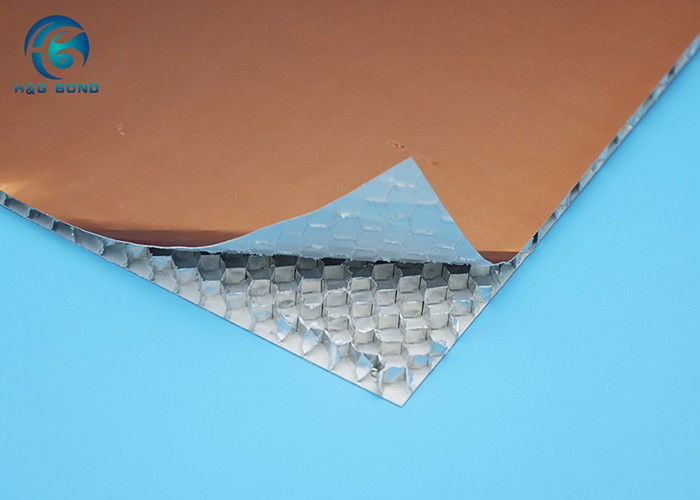

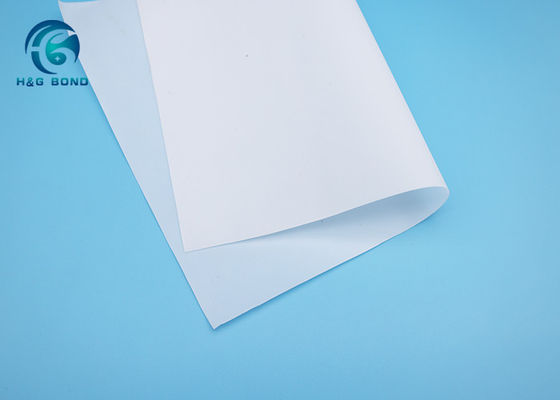

Product:Low Temperature Adhesive Cast Film For Aluminium Honeycomb Composite Panel
Decriptions
The polymer adhesive cast film for aluminum Honeycomb composite panels is based on the comprehensive research of aluminum honeycomb adhesive, combined with the independent intellectual property rights. It adopts the latest in-situ reinforecement,ionic cross-linking reinforcement, and toughening technologies,this adhesive has been successfully developed with many years of R&D and application experience.All the raw materials are virgin,which makes the film keeping high performance and stablity.
AH5015 adhesive cast film is used for aluminium honeycomb composite panel with 100% of adhesive resins,which ensures the honeycomb panel bonding well and has excellent peel strength.The processing temperature is low,for which makes the honeycomb panel combination well at lower temperature in high production speed.
Application

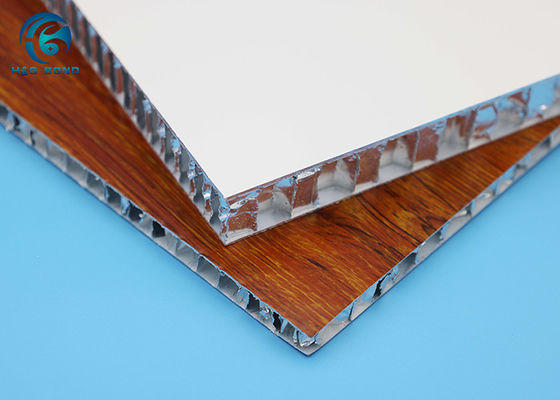

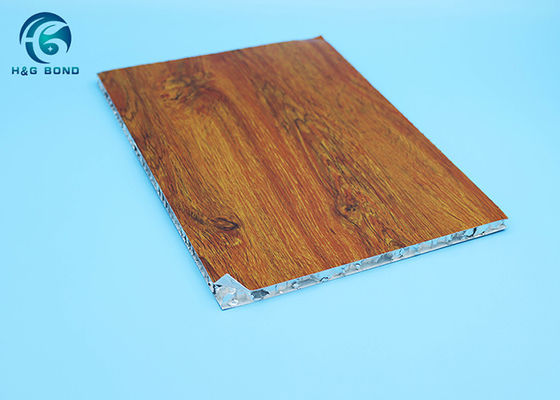

AH3015 polymer adhesive film is used for Aluminium honeycomb Panel,which can be used for outdoor headers,signboards,and interior and exterior decoration.The aluminium honeycomb panel is not easy to peel off and delaminate after using many years in interior or exterior area.
Advantages
Excellent bonding strength
Excellent resistance to Acid and Alkali and high UV resistance
Good anti-aging and long-lasting bonding performances
Low processing temperature in the production process.
Physical Properties
| Item | Unit | Testing Standard | 150 microns thickness | Remark |
| Density | g/cm3 | ASTM D1505 | 0.926 | |
| Tensile Strength | MPa | ASTM D638 | 8.7 | |
| Elongation at Break | % | ASTM D638 | >60 | |
| T-peel strength | 50N/mm | GB/T 2791 | >50 | 170℃ 2min |
| T-peel strength | 50N/mm | GB/T 2791 | >40 | 170℃ 40s |
| Width | Mm | GB/T 6673-1986 | ±5 | |
| Thickness | Mm | GB/T 6672-1986 | ±0.002 |
♦These are typical properties and not intended as specification
Specifications:
Width: 50mm-1600mm (Customization available)
Length: 600m/ roll or customization
Processing Suggestions :
Adhesive Layer Structure: AL+AH5015+aluminium honeycomb sheet +AH5015+AL
Bonding Temperature: 135℃-170℃ (Actual Temperature of tie Equipment)
Metal Surface: Phosphating or chromizing treatment and pre-degreasing treatment can avoid dust pollutants
QC Standard: IS09001:2015
Packing and Storage:
12 Rolls/Pallet,60- 80 KG/Roll (Customization available)；
Keep in a dry cool place. Avoid direct sunlight, ventilation, and moisture. The storage period at room temperature is 12 months. If the film color changes and elongation is found to decrease by 50%, do not use it.
.
Remarks: The above information and technical data are based on our existing product knowledge and experience. We do not guarantee the above content and do not assume legal responsibility. Customers must do a sample test before using our products to ensure the best processing conditions.
