Product Details:
|
| Material: | Adhesive Granules | Color: | Transparent |
|---|---|---|---|
| Usage: | Aluminium Honeycomb Panel | Future: | Excellent Bonding Force And Surface Embossing |
| Shape: | Cast Film | Melting Piont: | 118℃ |
| Highlight: | High Peel Strength Adhesive Cast Films,Cast Films Transparent,Transparent cast film |
||
Grade:AH3018

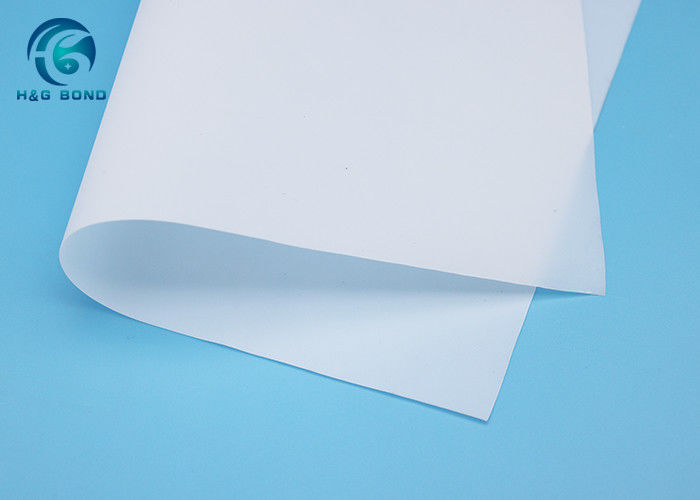

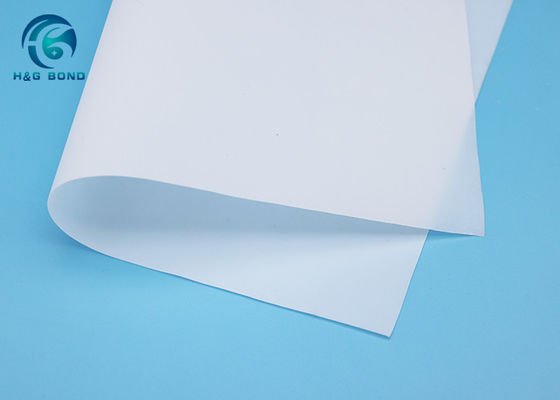

Product:High Peel Strength Adhesive Cast Film For Aluminium Honeycomb Composite Panel
Decriptions
The polymer cast films are made of maleic anhydride functionalized vinyl hot melt adhesive resin, which do not contain small molecule precipitation and do not react at room temperature. The purpose of bonding is mainly achieved by melting and heating. There is no cross-linking during the bonding process, and there is no molecular emission. Can be reheated
AH3018 adhesive cast film is used for aluminium honeycomb composite panel with 100% of adhesive resins with no solvent, no formaldehyde, no benzene, no toluene and other harmful substances, 100% solid content. The polymer film is only sticky after being heated and melted, and then the adhesion between various substances is achieved under a certain pressure.
Application

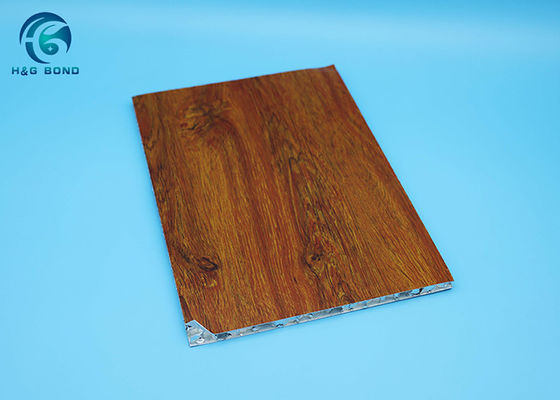

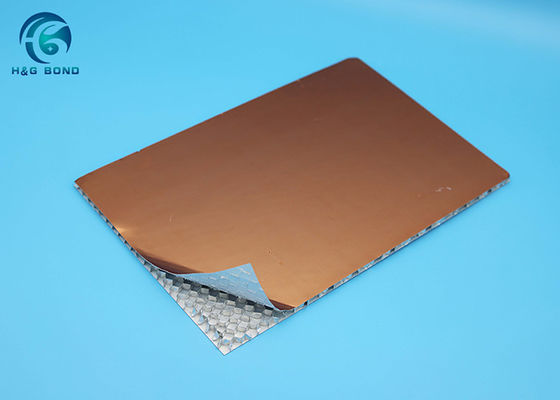

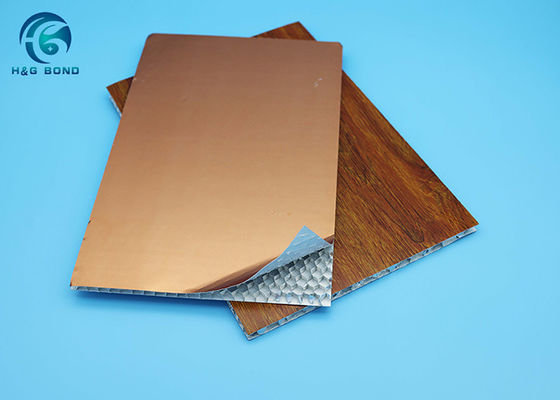

AH3018 polymer adhesive film is used for Aluminium honeycomb Panel,which can be used for outdoor headers,signboards,and interior and exterior decoration.
Advantages
Excellent bonding strength
Excellent resistance to Acid and Alkali and high UV resistance
Good anti-aging and long-lasting bonding performances
A2 grade fire resistance.
Physical Properties
| Item | Unit | Testing Standard | 180 microns thickness | Remark |
| Density | g/cm3 | ASTM D1505 | 0.926 | |
| Tensile Strength | MPa | ASTM D638 | 8.7 | |
| Elongation at Break | % | ASTM D638 | >65 | |
| T-peel strength | 50N/mm | GB/T 2791 | >50 | 170℃ 2min |
| T-peel strength | 50N/mm | GB/T 2791 | >40 | 170℃ 40s |
| Width | Mm | GB/T 6673-1986 | ±5 | |
| Thickness | Mm | GB/T 6672-1986 | ±0.002 |
♦These are typical properties and not intended as specification
Specifications:
Width: 50mm-1600mm (Customization available)
Length: 600m/ roll or customization
Processing Suggestions :
Adhesive Layer Structure: AL+AH3018+aluminium honeycomb sheet +AH3015+AL
Bonding Temperature: 155℃-175℃ (Actual Temperature of tie Equipment)
Metal Surface: Phosphating or chromizing treatment and pre-degreasing treatment can avoid dust pollutants
QC Standard: IS09001:2015
Packing and Storage:
6 Rolls/Pallet,60- 80 KG/Roll (Customization available)；
Keep in a dry cool place. Avoid direct sunlight, ventilation, and moisture. The storage period at room temperature is 12 months. If the film color changes and elongation is found to decrease by 50%, do not use it.
.
Remarks: The above information and technical data are based on our existing product knowledge and experience. We do not guarantee the above content and do not assume legal responsibility. Customers must do a sample test before using our products to ensure the best processing conditions.
