Product Details:
|
| Film Thickness: | 45 Microns | Material: | Virgin Adhesive Resins And Virgin PE |
|---|---|---|---|
| Color: | Clear | Future: | Excellent Peel Strength |
| Structure: | Three Layers | Application: | Bonding PE Core Material With Aluminium Coil |
| Highlight: | Clear Polymer Thin Films,Polymer Thin Films Three Layers,45 microns hot melt adhesive films |
||
Grade:AF1045

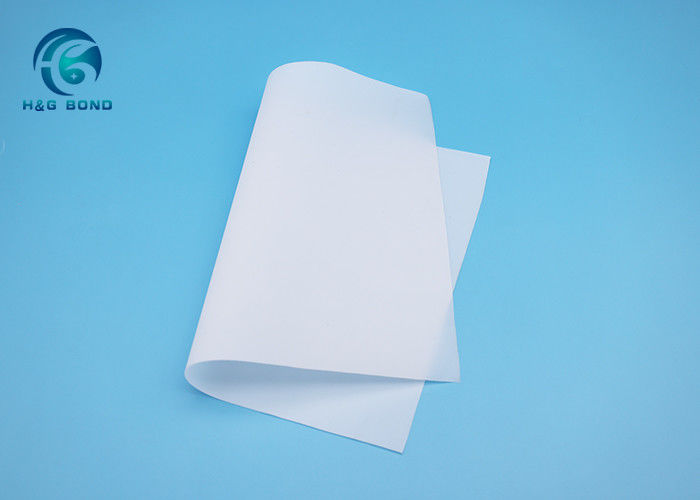

Product name:Excellent Peel Strength Hot Melt Adhesive Films For Alumunium Composite Panel
Decriptions
High polymer adhesive film is commonly known as hot melt film or Macro-molecule film.It is solid under normal temperature,but after heating,it would become the flowing liquid, the adhesive,which infiltrates bonded materials completely and reacts. As the technology advances and new materials innovation,high polymer adhesive film can be used of liquid glue in lots of application field.
AF1045 adhesive film is three layers film with 50% adhesive resins,it has excellent pulverization effect with good peel strength. And all the raw materials are virgin,for which ensure the products quality stable and excellent processablity.
Application
AF1045 hot melt PE adhesive film is widely for aluminium-plastic composite panel and partial panels, which is used for exterior wall and interior wall decorative panel,ceiling and advertising signboard and display stand etc. The film is better to used for the aluminium coil thickness 0.25-0.45 mm of the ACP,.
Advantages
a. Excellent bonding strength
b. Excellent resistance to Acid and Alkali and high UV resistance
c. Good anti-aging and long-lasting bonding performances
d. High efficient and easy to process
e. Suitable for normal aluminum composite panels
Physical Properties:
| Item | Unit | Testing Standard |
Thickness 45 microns |
Remark |
| Density | g/cm3 | ASTM D1505 | 0.931 | |
| Tensile Strength | MPa | ASTM D638 | 28 | |
| Elongation at Break | % | ASTM D638 | >450 | |
| Peel Strength | N/mm | GB/T 2790-1995 | >7 | |
| Width | Mm | GB/T 6673-1986 | ±5 | |
| Thickness | Mm | GB/T 6672-1986 | ±0.002 |
Specifications:
Width: 50mm-1600mm (Customization available)
Length: 2500m/roll or customization
Processing Suggestions :
Adhesive Layer Structure: AL+AF1045+PE+AF1045+AL
Bonding Temperature: 145°C-170°C (Actual Temperature of the
Equipment)
Packages and Storage
1.12 Rolls/Pallet, 60-80 KG/Roll (Customization available)；
2.Keep in a dry cool place. Avoid direct sunlight, ventilation, and moisture. The storage period at room temperature is 12 months. If the film color changes and elongation is found to decrease by 50%, do not use it.
Remarks: The above information and technical data are based on our existing product knowledge and experience. We do not guarantee the above content and do not assume legal responsibility. Customers must do a sample test before using our products to ensure the best processing conditions.
