Product Details:
|
| Structure: | Three Layers With Double Side Adhesive Resins | Material: | Adhesive Resins And Polyethylene |
|---|---|---|---|
| Color: | Transparent | Usage: | Bonding A2 Fire Resistance Sheet With Aluminium Coil |
| Future: | Excellent Peel Strength | Shape: | Film |
| Adhesive Resin Content: | 80% | Package: | 60-80 Kgs/Roll |
| Highlight: | Polyethylene Fire Retardant Film,Transparent Fire Retardant Film,Adhesive Resins flame retardant film |
||
Grade:AF2070

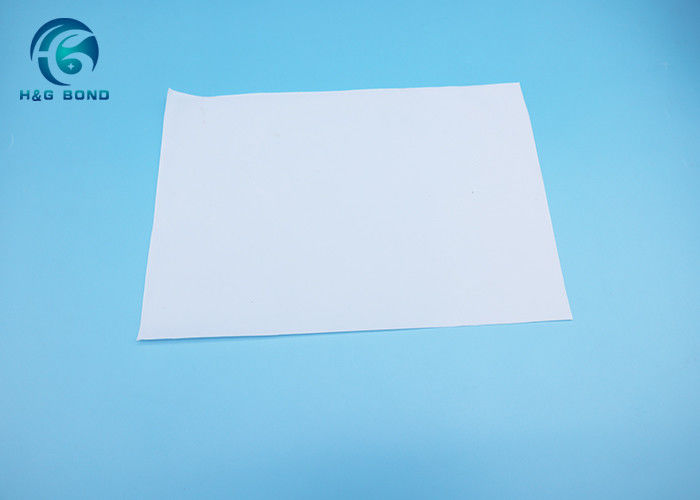

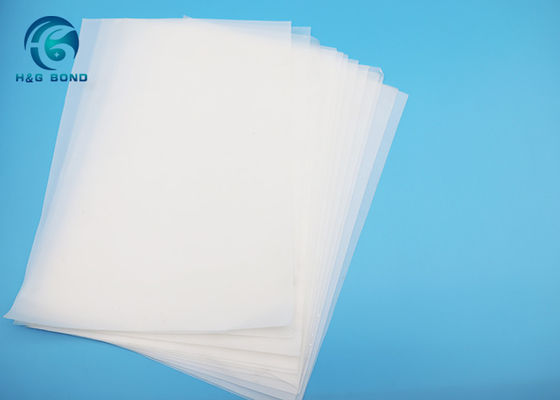

Product:Double side Adhesive Films For A2 Flame Retardant PE Alumunium Composite Panel
Decriptions

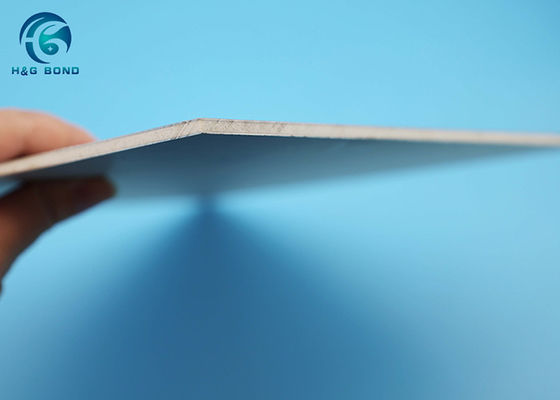

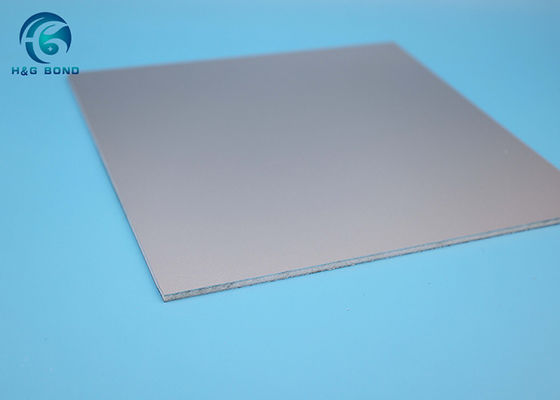

AF2070 is a polymer adhesive film for aluminum composite panels (ACP) and other metal aluminum and polyethylene composite products. ACP is made up of multi-layer materials. Both the upper and lower layers are high-purity aluminum alloy sheets, the middle layer is A2 flame retardant polyethylene (A2 FRPE) core board, and the front surface is a protective film. Polymer adhesive film is used for high temperature bonding between the A2 Fire Resistance Sheet and the aluminum alloy coil, which makes the most important technical index of the ACP , the peel strength being improved to an excellent level. Meanwhile ACP improves its excellent performances such water resistance and weather resistance.
Application
AF2070 Adhesive film is widely used for A2 flame retardant PE alumunium composite panel,which is widely used for Exterior wall and curtain wallboard of building, and the field needs to be fire resitance panel.
Advantages
Excellent bonding strength
Excellent resistance to Acid and Alkali and high UV resistance
Good anti-aging and long-lasting bonding performances
Suitable for A2 grade aluminum composite panels
Technical Data:
| Item | Unit | Testing Standard | 70 microns thickness | Remark |
| Density | g/cm3 | ASTM D1505 | 0.93 | |
| Tensile Strength | MPa | ASTM D638 | 10 | |
| Elongation at Break | % | ASTM D638 | >500 | |
| Peel Strength | N/mm | GB/T 2790-1995 | >7 | |
| Width | Mm | GB/T 6673-1986 | ±5 | |
| Thickness | Mm | GB/T 6672-1986 | ±0.002 |
♦These are typical properties and not intended as specification
Specifications:
Width: 50mm-1600mm (Customization available)
Length: 1500m/ roll or customization
Processing Suggestions :
Adhesive Layer Structure: AL+AF2070+A2 FR sheet +AF2070+AL
Bonding Temperature: 145℃-170℃ (Actual Temperature of tie Equipment)
Bonding Press Force: > 7kg/cm2
Metal Surface: Phosphating or chromizing treatment and pre-degreasing treatment can avoid dust pollutants
QC Standard: IS09001:2015
Packing and Storage:
12 Rolls/Pallet,60- 80 KG/Roll (Customization available)；
Keep in a dry cool place. Avoid direct sunlight, ventilation, and moisture. The storage period at room temperature is 12 months. If the film color changes and elongation is found to decrease by 50%, do not use it.
.
Remarks: The above information and technical data are based on our existing product knowledge and experience. We do not guarantee the above content and do not assume legal responsibility. Customers must do a sample test before using our products to ensure the best processing conditions.
