Product Details:
|
| Structure: | Three Layers With Double Side Adhesive Granules | Material: | Special Adhesive Resins And Polyethylene |
|---|---|---|---|
| Color: | Transparent | Usage: | Bonding A2 Fire Resistance Sheet With Aluminium Coil |
| Future: | Excellent Bonding Force And Doubel Side | Shape: | Film |
| Adhesive Resin Content: | 80% | Package: | 60-80 Kgs/Roll |
| Highlight: | Double Side Fire Retardant Film,Fire Retardant Film Transparent,Transparent fire retardant shrink wrap |
||
Grade:AF2080
Product:Double side Adhesive Films For A2 Flame Retardant PE Alumunium-Plastic Composite Panel
Decriptions

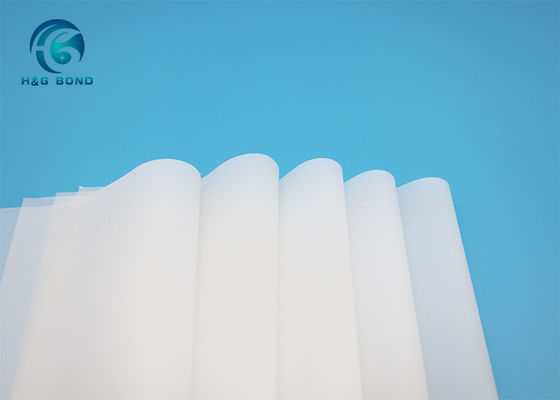

The polymer adhesive film is made of polythene and adhesive resin. This kind of adhesive film is used in production of composite materials or panels like aluminium composite panel or other metal-plastic composite panel,it bonds the plastic and surface metal sheet together.
AF2080 adhesive film is three layers film with 80% adhesive resins,it has excellent pulverization effect with good peel strength. And all the raw materials are virgin,for which ensure the products quality stable and excellent processablity. The products can be successfully applied to the domestic and overseas market.
AF2080 adhesive film is three layers film with 80% adhesive resins,it has excellent pulverization effect with good peel strength. And all the raw materials are virgin,for which ensure the products quality stable and excellent processablity. The products can be successfully applied to the domestic and overseas market.
Application

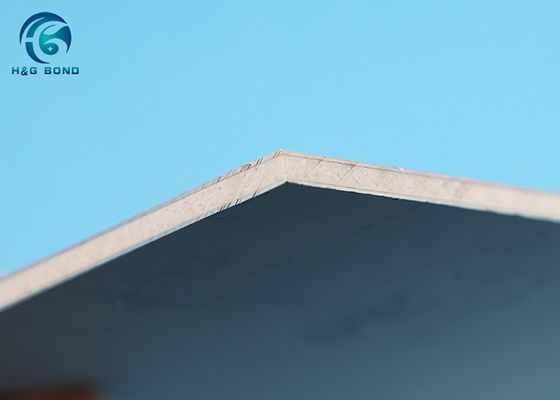

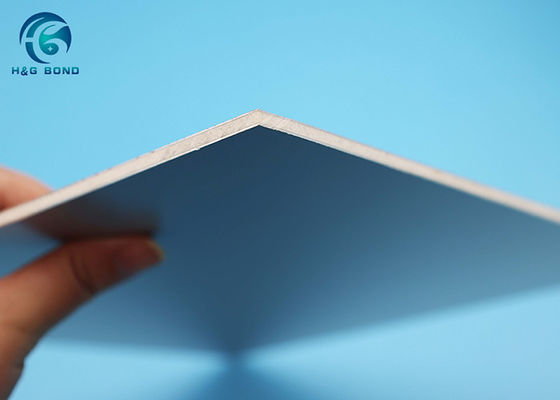

AF2080 Adhesive film is widely used for A2 flame retardant PE alumunium composite panel,which is widely used for Exterior wall and curtain wallboard of building, and the field needs to be fire resitance panel.
Advantages
Excellent bonding strength
Excellent resistance to Acid and Alkali and high UV resistance
Good anti-aging and long-lasting bonding performances
Suitable for A2 grade aluminum composite panels
Technical Data:
| Item | Unit | Testing Standard | 80 microns thickness | Remark |
| Density | g/cm3 | ASTM D1505 | 0.93 | |
| Tensile Strength | MPa | ASTM D638 | 10 | |
| Elongation at Break | % | ASTM D638 | >500 | |
| Peel Strength | N/mm | GB/T 2790-1995 | >7 | |
| Width | Mm | GB/T 6673-1986 | ±5 | |
| Thickness | Mm | GB/T 6672-1986 | ±0.002 |
♦These are typical properties and not intended as specification
Specifications:
Width: 50mm-1600mm (Customization available)
Length: 1500m/ roll or customization
Processing Suggestions :
Adhesive Layer Structure: AL+AF2080+A2 FR sheet +AF2080+AL
Bonding Temperature: 145℃-170℃ (Actual Temperature of tie Equipment)
Bonding Press Force: > 7kg/cm2
QC Standard: IS09001:2015
Packing and Storage:

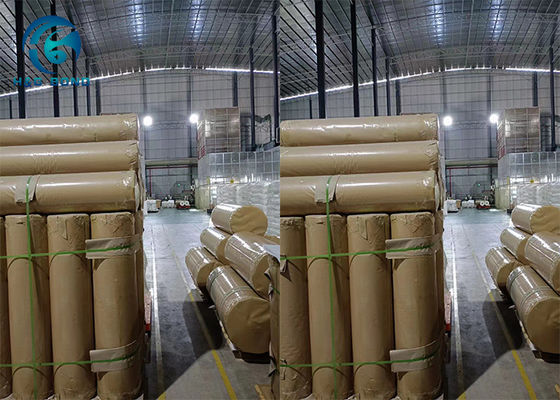

12 Rolls/Pallet,60- 80 KG/Roll (Customization available)；
Keep in a dry cool place. Avoid direct sunlight, ventilation, and moisture. The storage period at room temperature is 12 months. If the film color changes and elongation is found to decrease by 50%, do not use it.
.
Remarks: The above information and technical data are based on our existing product knowledge and experience. We do not guarantee the above content and do not assume legal responsibility. Customers must do a sample test before using our products to ensure the best processing conditions.
