High Content Fire Retardant Film For Aluminium Corrugated Composite Panel

Grade:AF1060

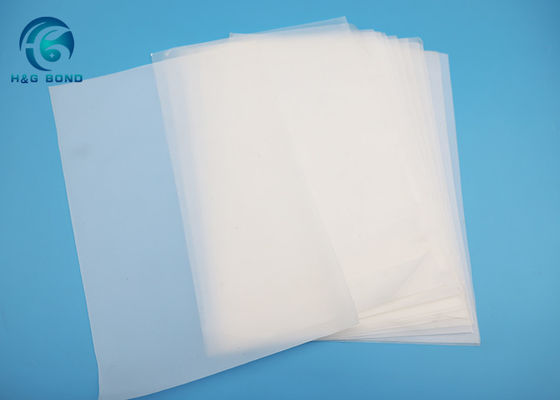

Product:AF1060 High Content Adhesive Resin Film for Aluminium-Corrugated Composite Panel

Decriptions

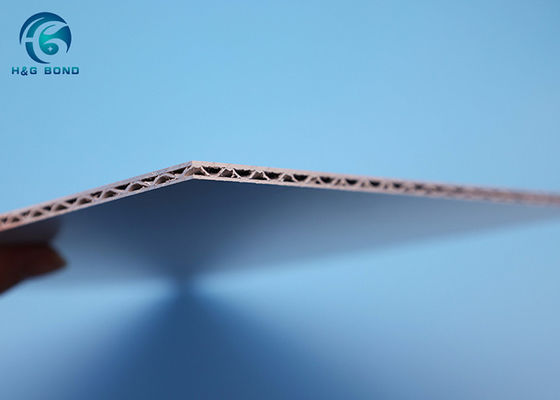

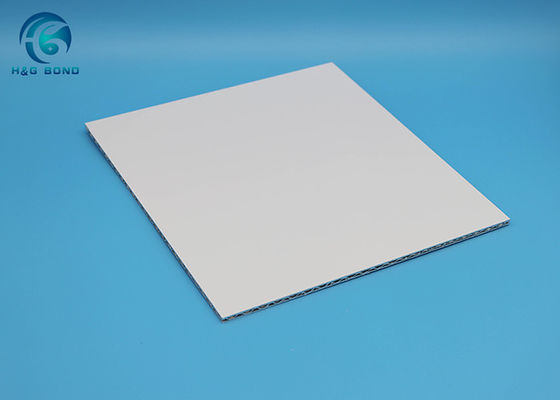

The polymer adhesive film for aluminum corrugated composite panels. Aluminium corrugate panel is made up of multi-layer materials. Both the upper and lower layers are high-purity aluminum alloy sheets, the middle layer is aluminium corrugated sheet, and the front surface is a protective film. Polymer adhesive film is used for high temperature bonding between the aluminium corrugated sheet and the aluminum alloy coil.

AF1060 is used for aluminium corrugated composite panel with high content,80% of adhesive resins,which ensures the corrugated panel bonding well and has excellent peel strength.The aluminium-corrugated panel is not easy to peel off and delaminate after using many years in interior or exterior area.

Application

AF1060 polymer adhesive film is used for Aluminium-Corrugated Panel,which can be used for outdoor headers,signboards,and interior and exterior decoration.

Advantages

a. Excellent bonding strength

b. Excellent resistance to Acid and Alkali and high UV resistance

c. Good anti-aging and long-lasting bonding performances

♦These are typical properties and not intended as specification

Specifications:

Width: 50mm-1600mm (Customization available)

Length: 1500m/ roll or customization

Processing Suggestions :

Adhesive Layer Structure: AL+AF1060+aluminium corrugated sheet +AF1060+AL

Bonding Temperature: 145℃-170℃ (Actual Temperature of tie Equipment)

Bonding Press Force: > 7kg/cm2

Metal Surface: Phosphating or chromizing treatment and pre-degreasing treatment can avoid dust pollutants

QC Standard: IS09001:2015

Packing and Storage:

12 Rolls/Pallet,60- 80 KG/Roll (Customization available)；

Keep in a dry cool place. Avoid direct sunlight, ventilation, and moisture. The storage period at room temperature is 12 months. If the film color changes and elongation is found to decrease by 50%, do not use it.

.

Remarks: The above information and technical data are based on our existing product knowledge and experience. We do not guarantee the above content and do not assume legal responsibility. Customers must do a sample test before using our products to ensure the best processing conditions.
